商品の詳細:
お支払配送条件:
|
| 取付タイプ: | 板台紙 | ピン: | 35 Pin |
|---|---|---|---|
| メス品番: | 1-776164-1 | オス品番: | 1-776231-1 |
| 材料: | 黒 PA66+GF(UL94 V-0)、銅合金(錫/金メッキ) | 温度範囲: | -40°C~+125°C |
| 防水定格: | IP67 | 行数: | 3 |
| ハイライト: | 35-Pin Automotive ECU Connector,1-776164-1 Automotive ECU Connector,AMP Automotive ECU Connector |
||
| Component | Features | TE Part Number | Specification |
|---|---|---|---|

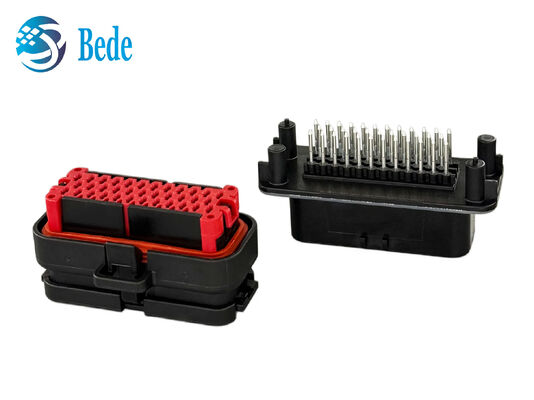

| Part Number | 35POS, pin dia 1.3, HDR Assy, 180deg, COD 1 | 1-776231-1 | Vertical through-hole PCB header |
| Rated Current | Up to 17A per contact, gold-plated mating area | - | Power & signal circuit applications |
| Mounting Style | Vertical, through-hole solder termination to PCB | - | Wire-to-board connection |

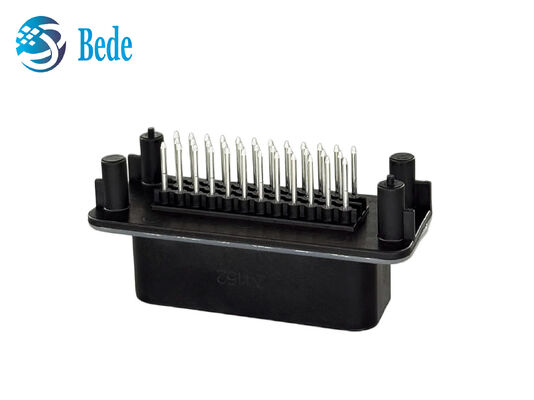

| Header Type | Fully shrouded, 35 vertical pins, 3 rows, 4mm pitch | 1-776231-1 | Vertical PCB male header |

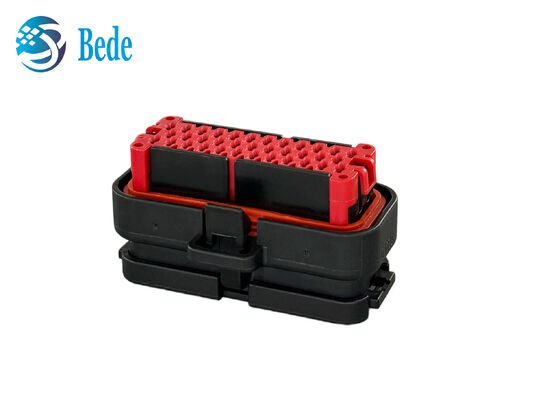

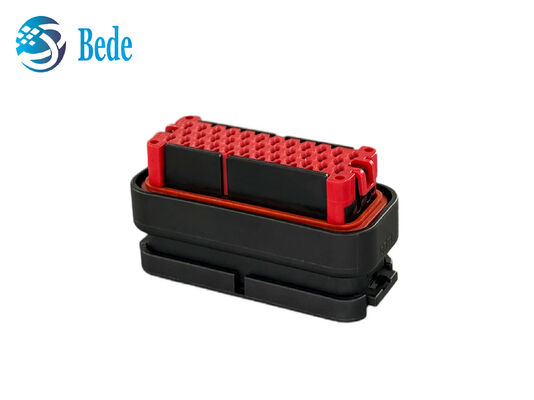

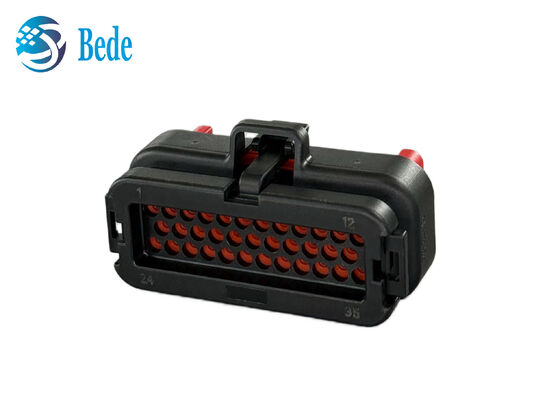

| Female Housing (Wire Side) | Integral silicone seal, red secondary lock, latch | 776164-1 | IP67 waterproof female connector |
| Sealability | Sealable design | - | Suitable for sealed environments |
| Housing Features | Black housing, keying code 1, UL 94V-0 flammability rating | - | Robust industrial construction |
| Operating Temperature | -40°C to 125°C | - | Wide-range environmental compatibility |
