商品の詳細:
お支払配送条件:
|
| シリーズ: | 070 エコノシール マーク-2 | ポジション数: | 12 |
|---|---|---|---|
| 行数: | 2 | ハウジング材質: | PBT |
| 温度範囲: | -30℃～+105℃ | 難燃性: | UL 94 V-2 |
| コネクタ形状: | 長方形 |

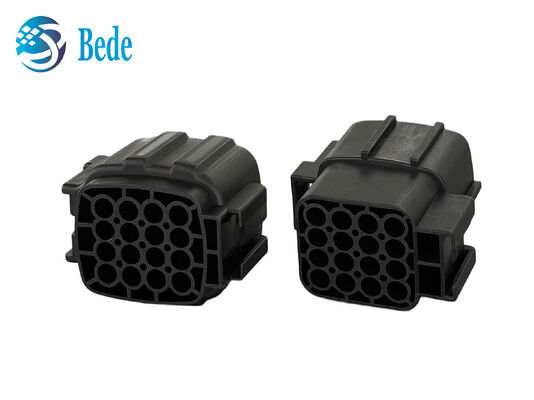

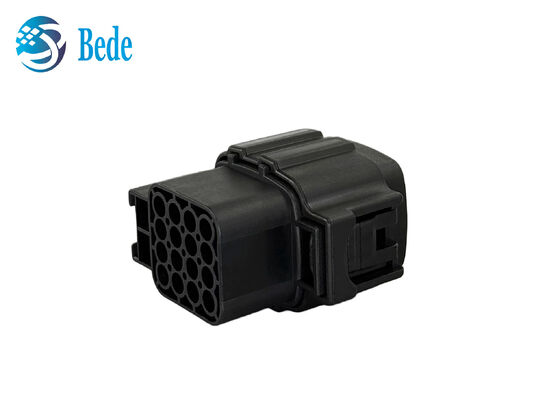

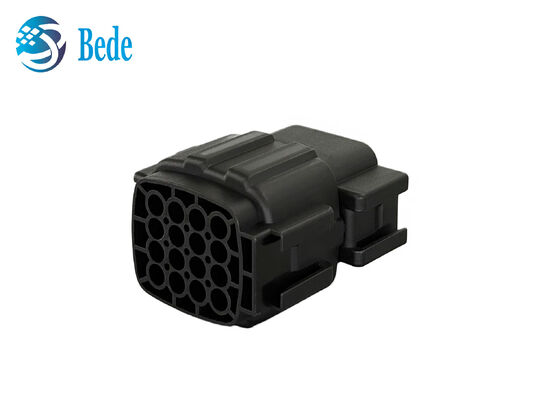

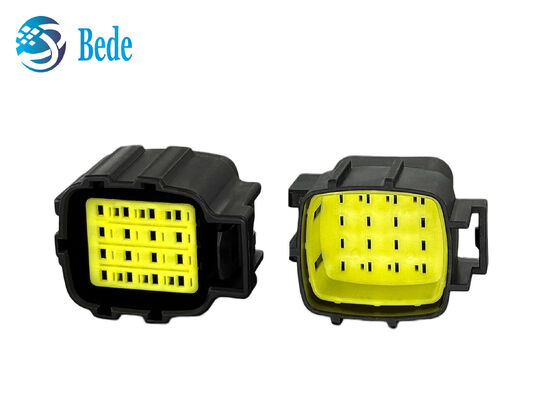

The 2822638-1 and 174663-2 are matching, wire-to-wire automotive connector components from TE Connectivity. They belong to the Econoseal J - Mark II / 070 Series, designed for harsh environments where exposure to moisture, dust, and vibration is expected.
| Specification | 2822638-1 | 174663-2 |
|---|---|---|
| Number of Positions | 12 | 12 |
| Connector & Housing Type | Housing for Female Terminals | Housing for Male Terminals |
| Operating Voltage | 24 VDC | 12 VDC |
| Rated Current | 11 Amps (max) | 11 Amps (max) |
| Contact Size | 1.8mm | 1.8mm |
| Temperature Range | -30°C to +105°C | -30°C to +105°C |
| Flame Retardancy | UL 94 V-2 | UL 94 V-2 |
| Connector Mounting Type | Cable Mount (Free-Hanging) | Cable Mount (Free-Hanging) |
